Voronoi Pencil Holder
A Voronoi-pattern case for two mechanical pencils.
An OHTO MS01 and a Pentel Orenz each sit in their own insert, and my name runs along one end of the body. In the CAD it is 162 mm long.
The CAD

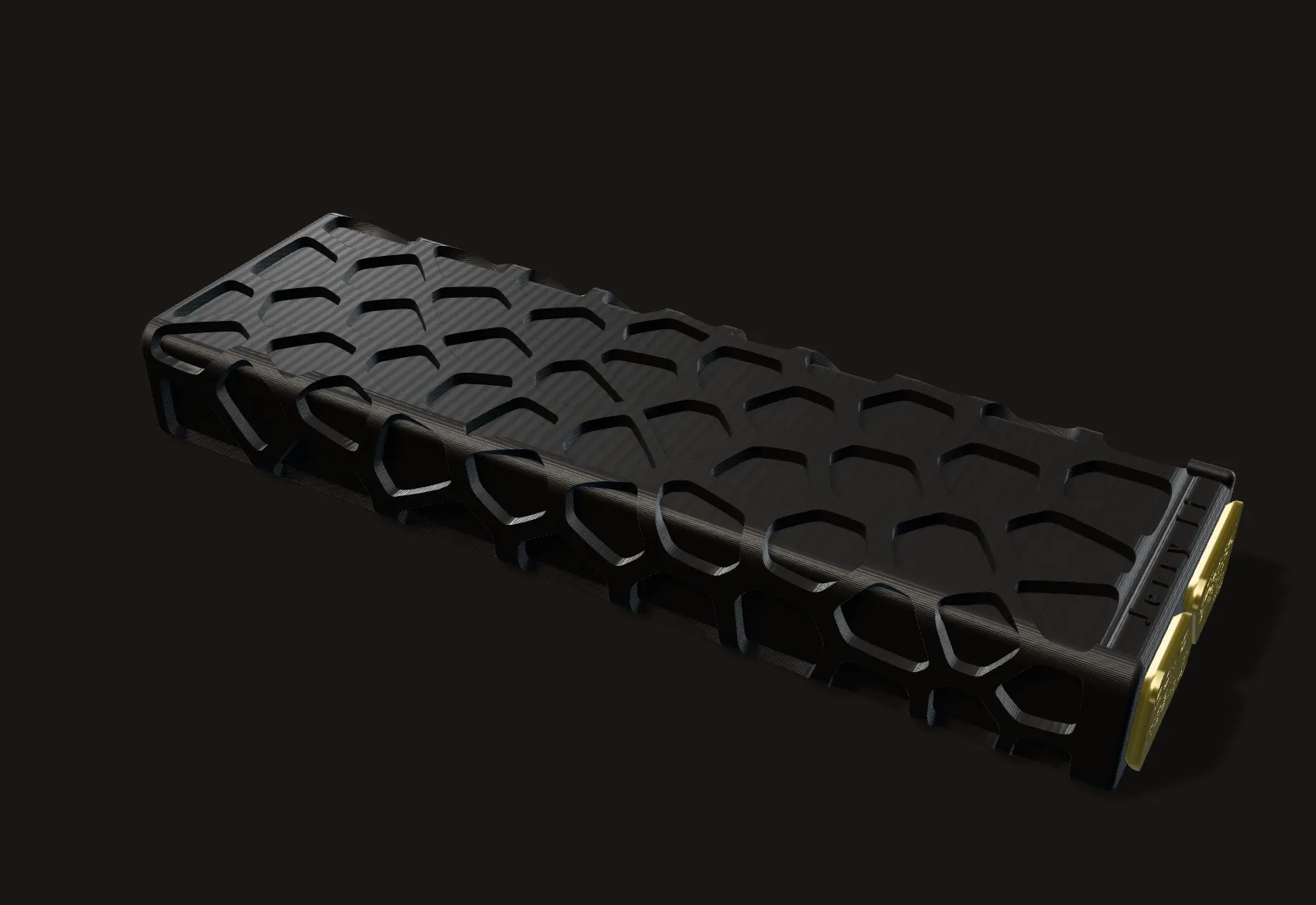

The body and its two inserts, one for each pencil, from my CAD. Scroll and the inserts slide out of the end like drawers, first the OHTO, then the Orenz, and back in together.
The holder and its two inserts, from my CAD. Each insert slides out about 80% of its length: about 130 mm of its 162 mm
